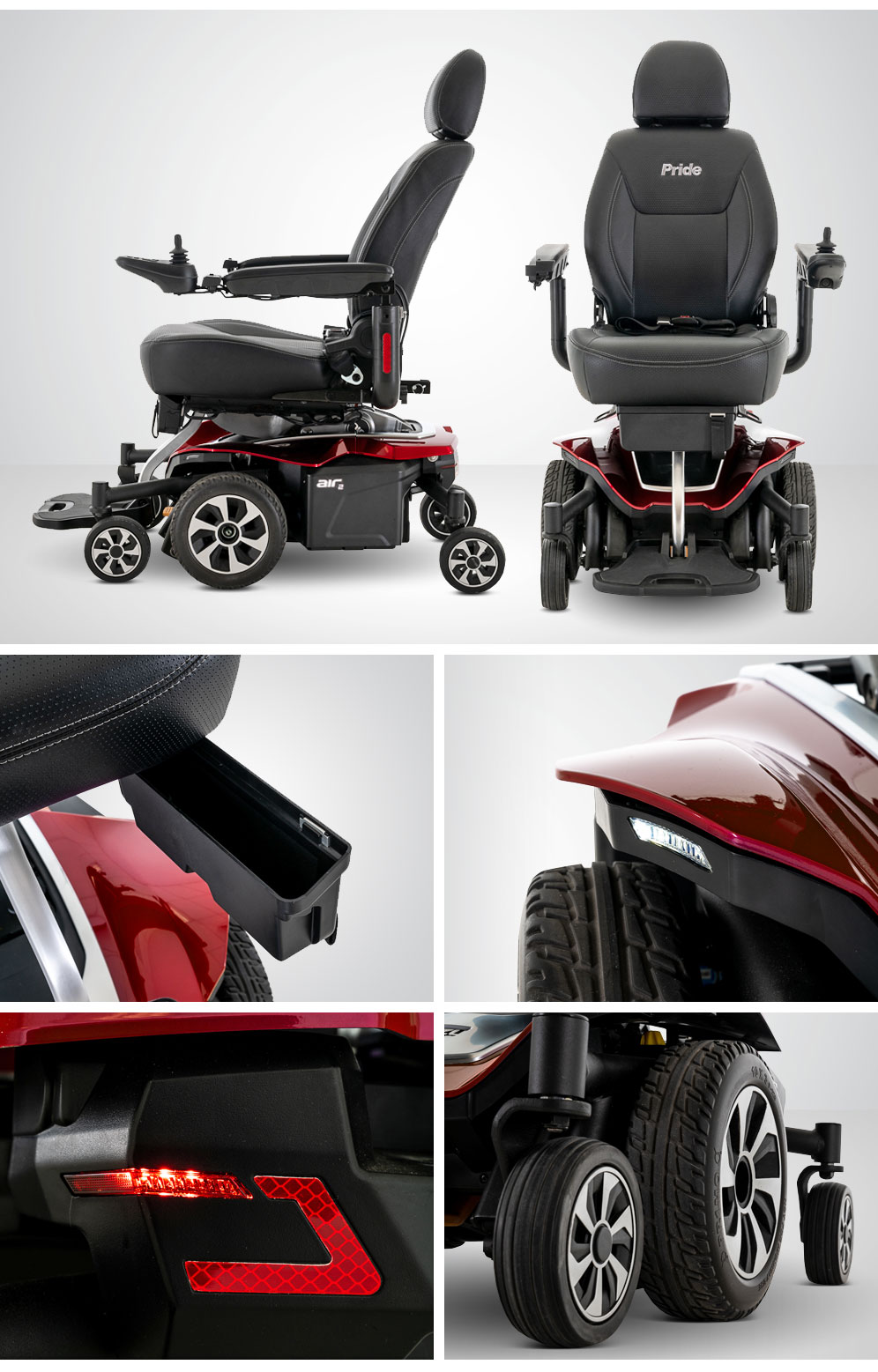

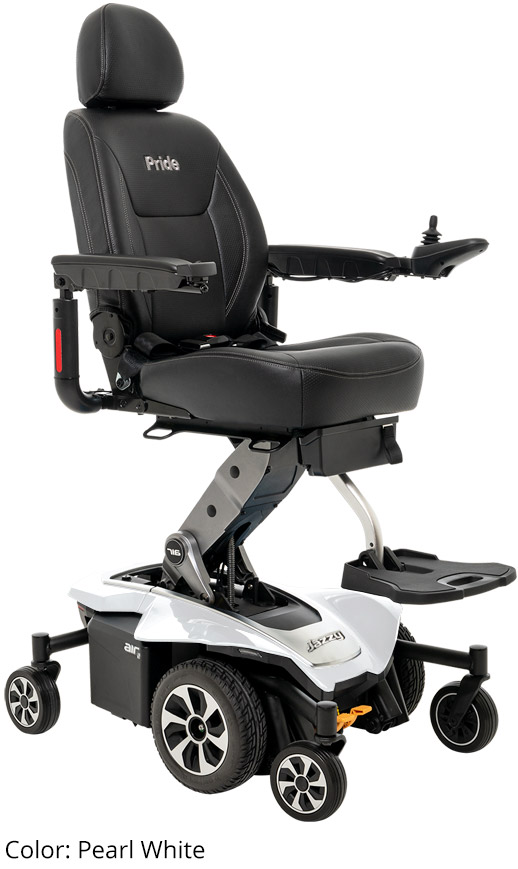

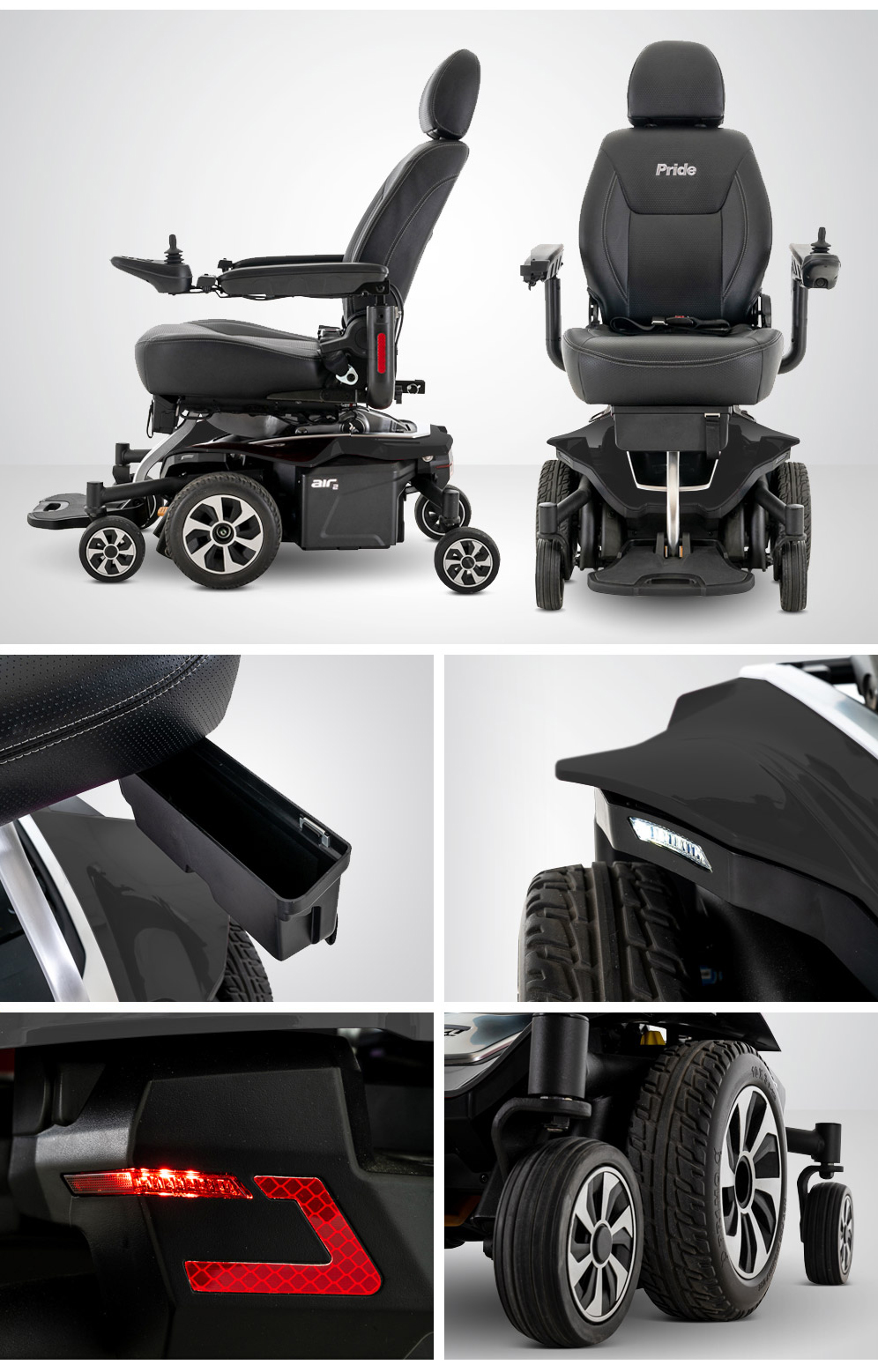

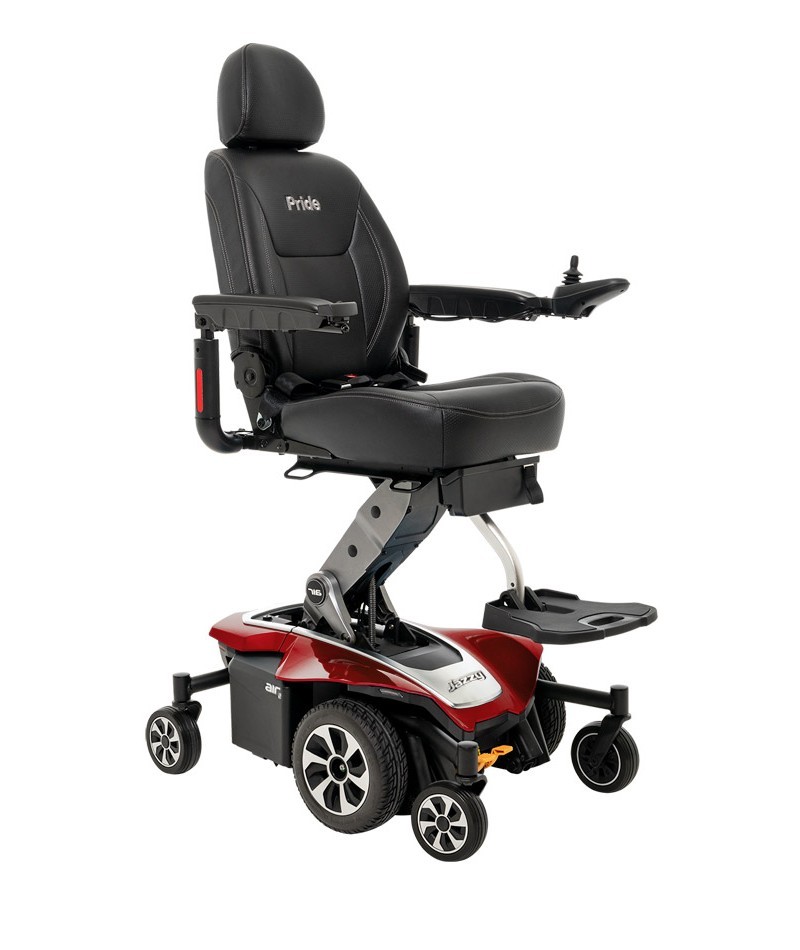

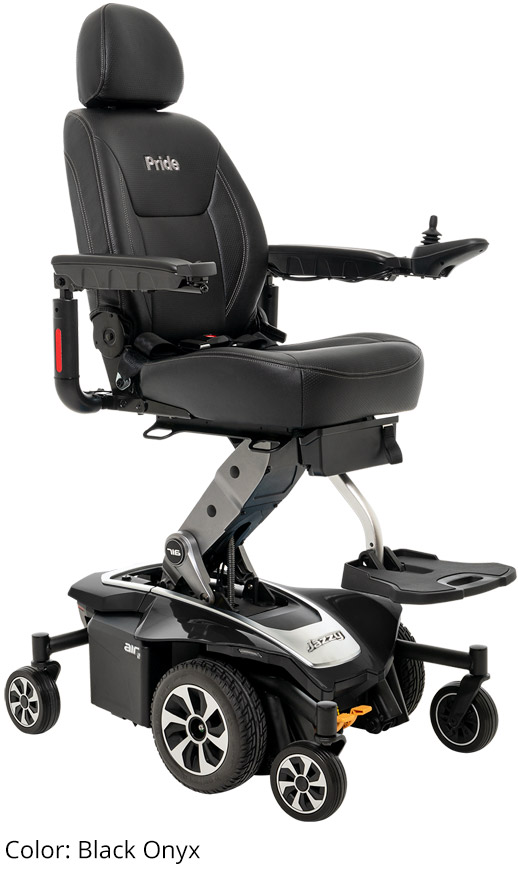

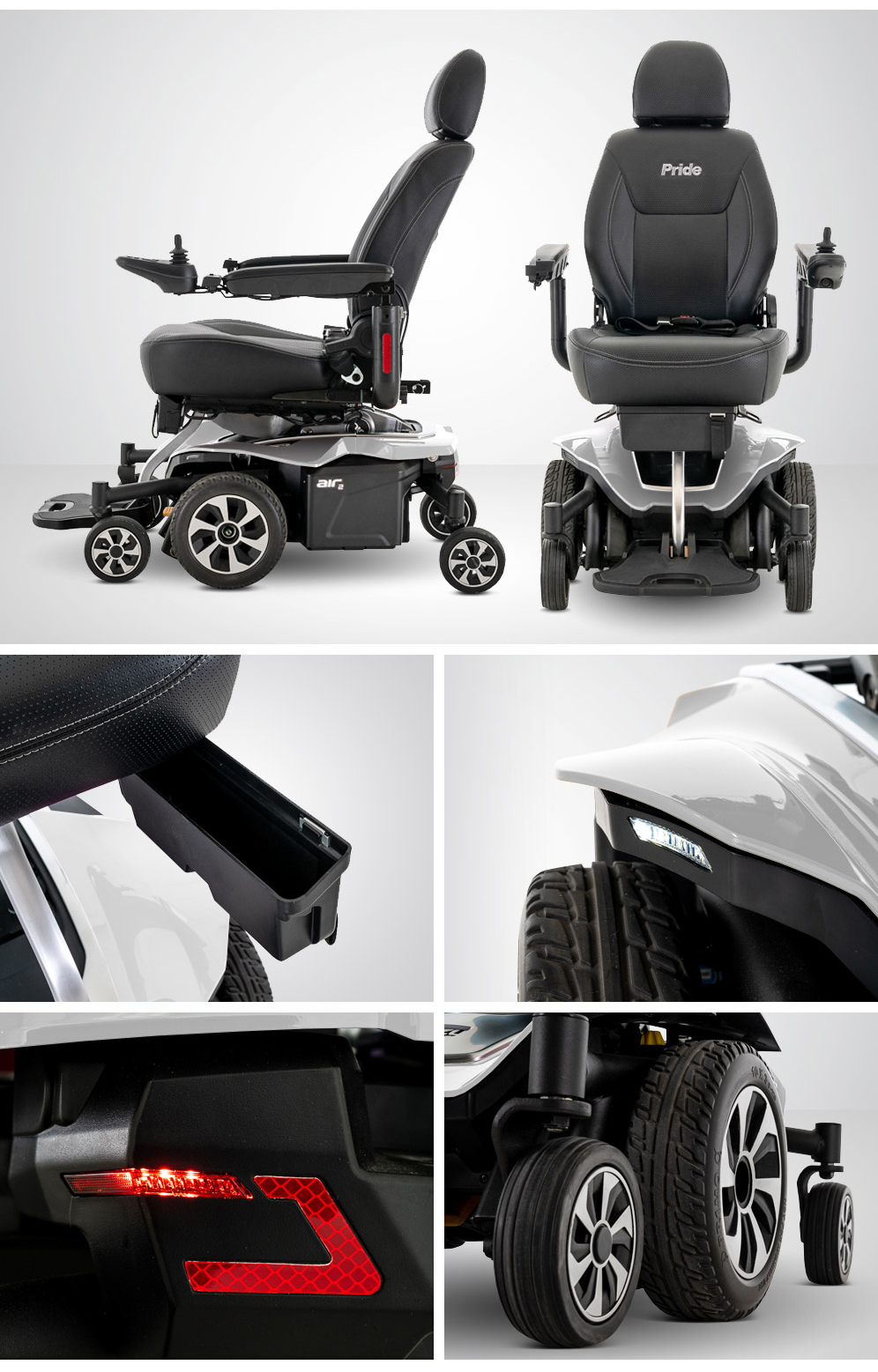

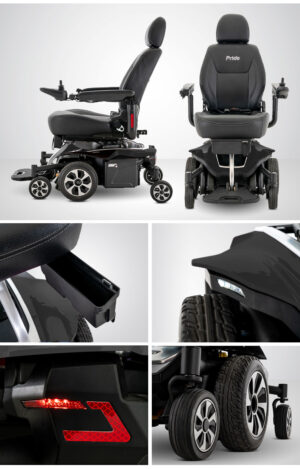

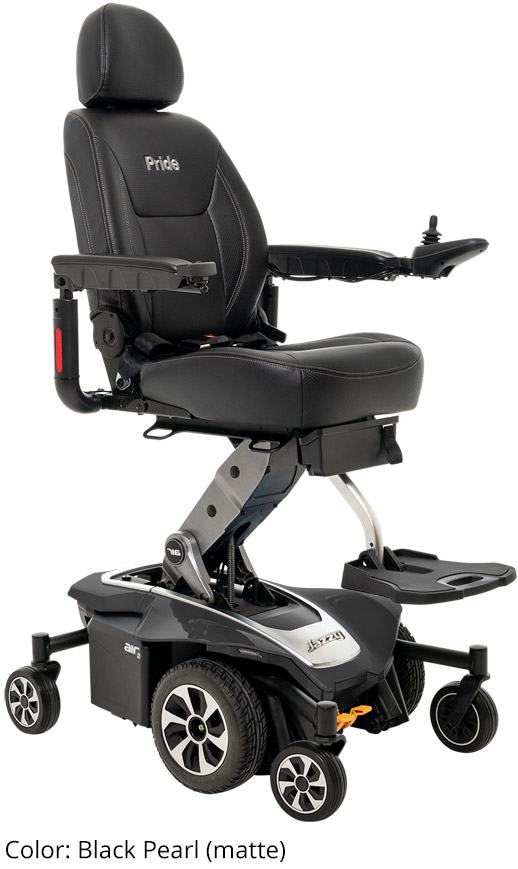

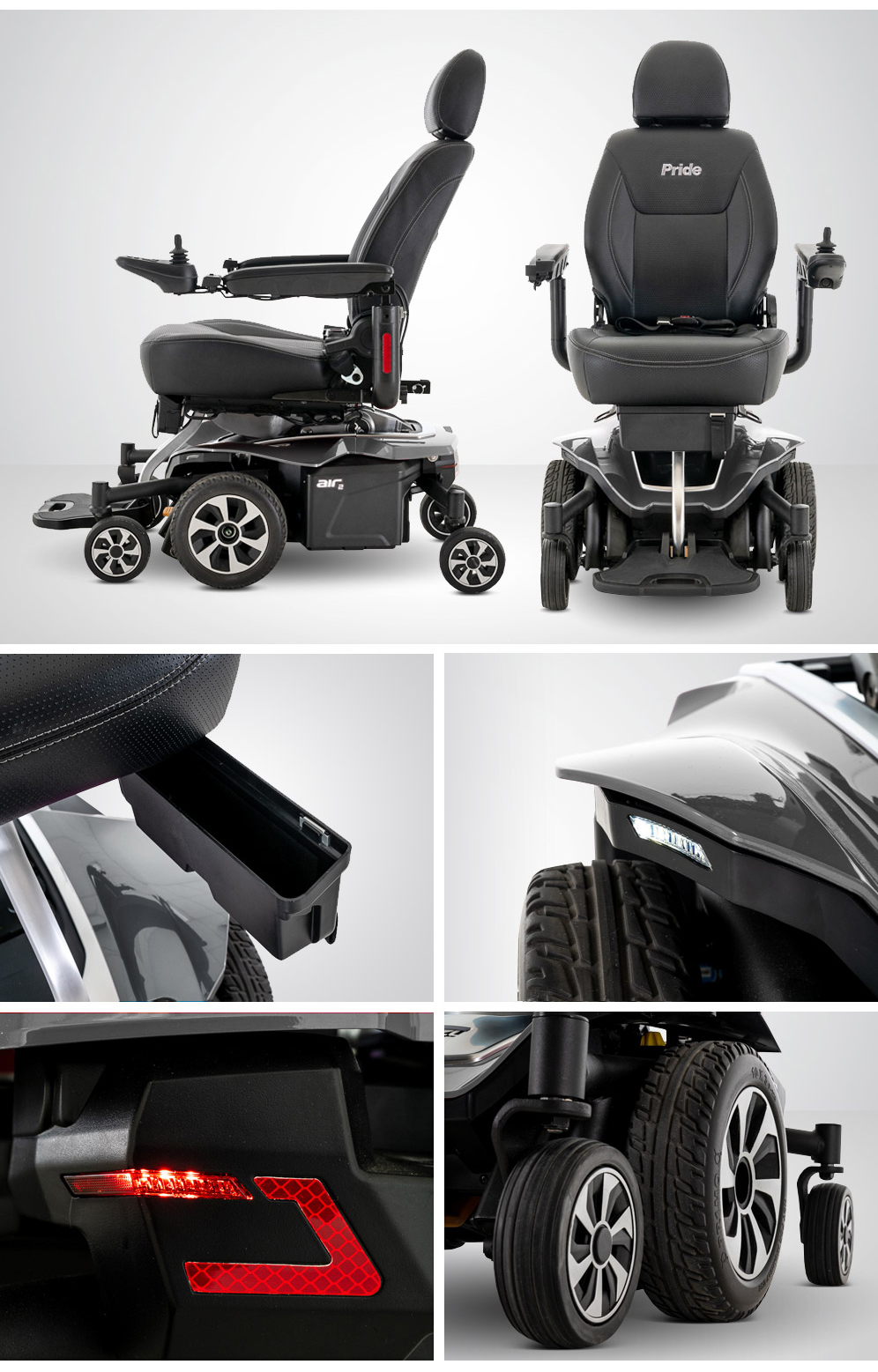

jazzy air 2 elevating seat
jazzy air 2 elevating seat
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

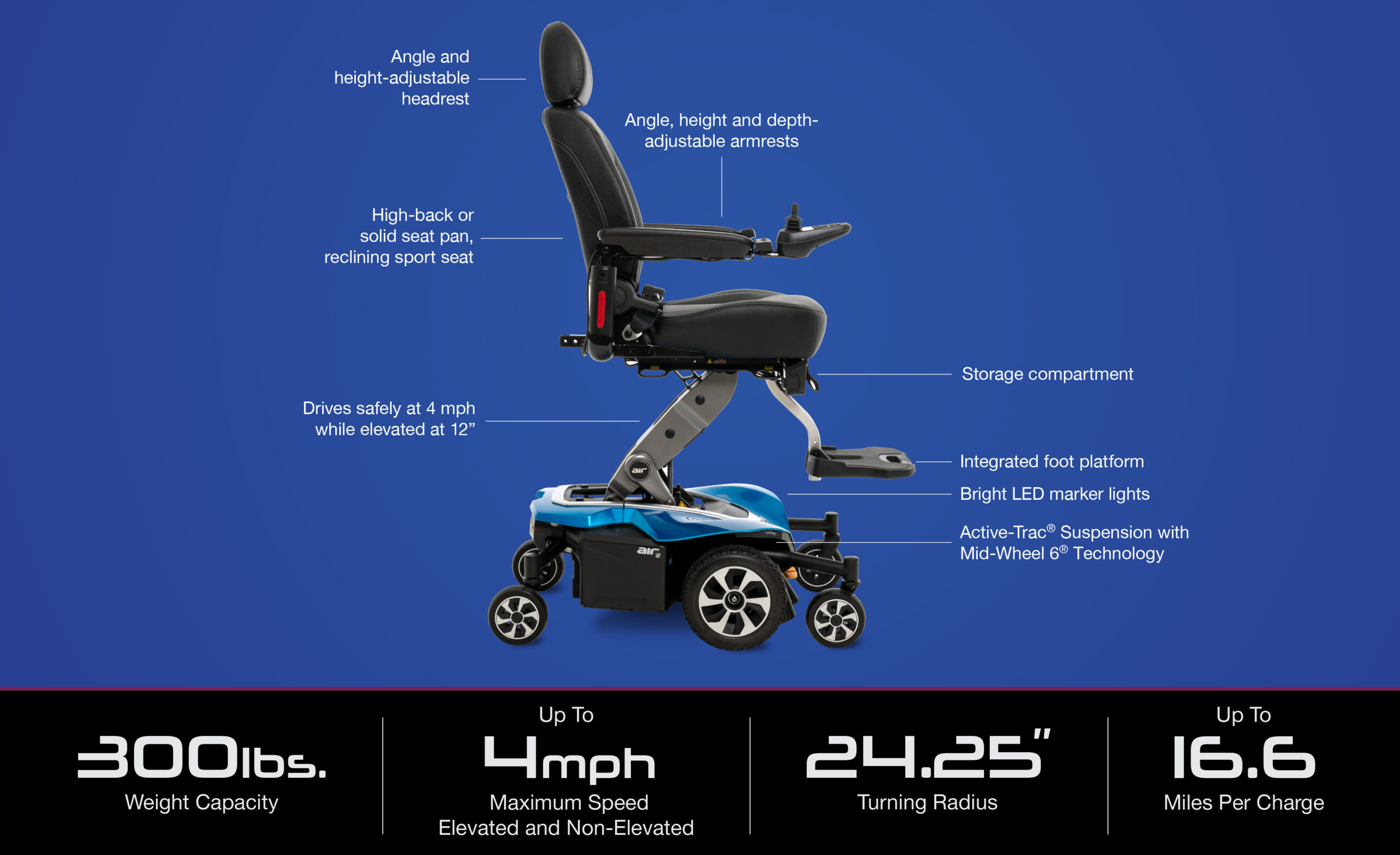

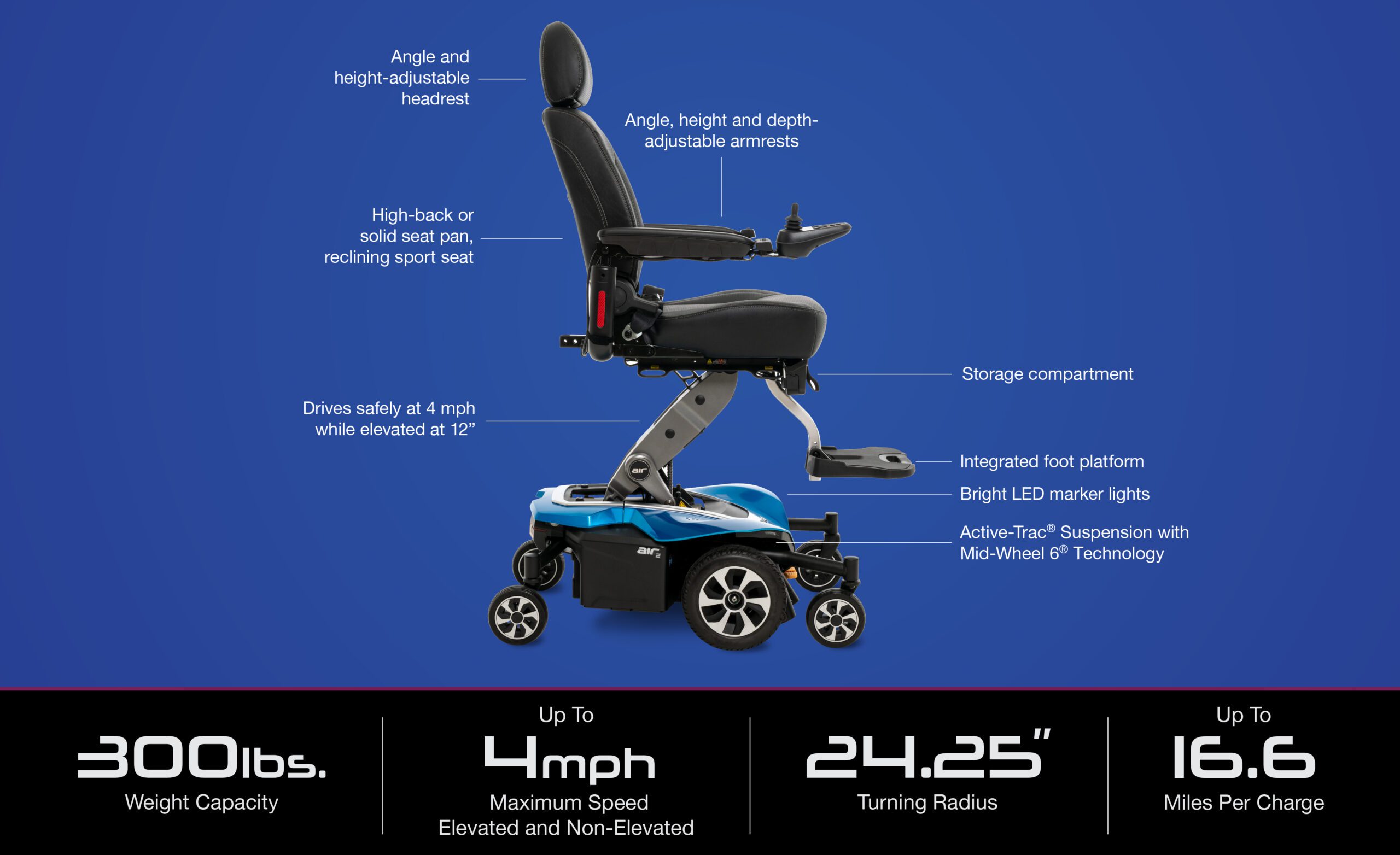

| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy Air® 2
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.25″ |
| Width1 | 23.25″ |
| Length1,2 | 33.21″/42″ (with footplate) |
| Maximum Speed3 | Up to 4.0 mph (elevated and non-elevated position) |
| Ground Clearance1 | 1″ at motor bracket |
| Braking System | Regenerative and electro-mechanical |
| Front Wheels | 6″ solid casters |
| Drive Wheels | 10″ solid |
| Rear Wheels | 6″ solid casters |
| Drivetrain | Two motor, Mid-Wheel 6® drive |
| Weight of Heaviest Piece | 202 lbs. with seat |
| Suspension Type | Active-Trac® with Mid-Wheel 6® Technology |
| High-Back Seat (max. size) | 20″W x 20″-22″D |
| Standard Seat Sizes | 16″x16″-18″ 18″x18″-20″ 20″x20″-22″ |
| High-Back Seat-to-Floor Range | 21.25” – 33” |
| Battery Size (2 required) | 12 volt, U-1 Optional 40 Ah |
| Battery Weight5 | U1 Batteries: 24.5 lbs. 40 Ah Batteries: 32.5 lbs. |
| Standard Battery Charger | 5 amp, off-board |
| Per-Charge Range3,6 | Up to 15 miles at 300 lbs.; Up to 16.6 miles at 220 lbs. |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| HCPCS | K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
